詳細情報 |
|||
| モデルいいえ。: | YD21-007---YD21-010 | 名前: | 経済的なつま先ジャック |
|---|---|---|---|
| 色: | 赤くおよび青の常態は、およびカスタマイズすることができる | 表面処理: | 粉のコーティング |
| MOQ: | 20pcs | 受渡し時間: | 受け取られた沈殿物の後の30日 |
| 使用: | 上昇の重い植物か機械類 | 証明: | CE |
| 支払: | 1) T/Tの30%の沈殿物、B/Lのコピーに対して70%。2）一覧でL/C | ||
| ハイライト: | つま先油圧持ち上がるジャック,5Ton油圧持ち上がるジャック,頑丈な10トンの油圧つま先ジャック |
||
製品の説明

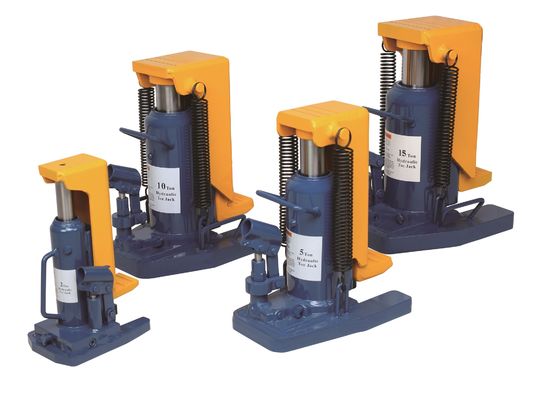

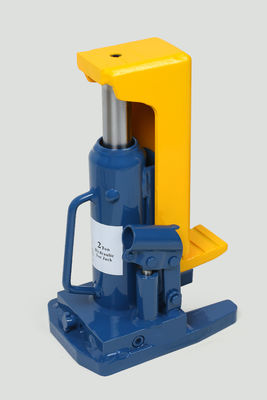

YD21-007/ Economic Toe Jack
Designed for lifting loads with very low minimum clearances (foot) or high clearances (head)
Ideal for house moving, machinery installation and application at shipyard, bridge building or plant construction sites
Great companion tool for machinery skates
Convenient swivel socket for easy operation in any direction on 5 and 10 ton models
Safety valve for overload protection
Features :
- spring assisted return and over-travel protection on 5, 10 ton or 15ton models
- Ram is made of heat treated special steel to resist rust and assure strength
- Electrically welded base and cylinders to assure strength
- Not affected by temperature extremes
- Pump handle included
- Complies with ANSI/ASME PALD 2009 standards
Technical Specification:
| Model No. | YD21-007 | YD21-008 | YD21-009 | YD21-010 | ||||||||||
| Toe Capacity | 4,400LB (2,000KGS) | 11,000LB (5,000KGS) | 22,000LB (10,000KGS) | 33,000LB (15,000KGS) | ||||||||||
| Head Capacity | 6,600LB (3,000KGS) | 13,200LB (6,000KGS) | 30,800LB (14,000KGS) | 44,000LB (20,000KGS) | ||||||||||
| Min./Max Toe Height | 0.7"(17mm) / 5.2"(132mm) | 1.06"(27mm) / 5.8"(147mm) | 1.22"(31mm) / 6.9"(176mm) | 1.22"(31mm) / 7.7"(196mm) | ||||||||||
| Min / Max Head Height | 9.2"(235mm)/13.8"(350mm | 11.5"(293mm)/16.25"(413mm) | 12.8"(327mm)/18.6"(472mm) | 13.58"(345mm)/20"(510mm) | ||||||||||
| Toe Size | 2"x2"(50x50mm) | 2.95"x2.2"(75x57mm) | 3.3"x2.36"(84x60mm) | 3.9"x2.75"(100x70mm) | ||||||||||
| Base Size | 7"x5"(178x125mm) | 10.6"x7.2"(270x183mm) | 11.3"x9.4"(287x240mm) | 11.8"x9.8"(300x250mm) | ||||||||||
| N.W./G.W. | 18.7/23lb(8.5/10.5kg) | 49.5/52.8lb(22.5/24kg) | 82.5/85.8lb(37.5/39kg) | 106.7/110lb(48.5/50kg) | ||||||||||
| Package Size | 9"x7"x9.8"(230x170x250mm) | 12.6"x9"x12.6"(320x230x320mm) | 13.4"x11.4"x14.2"(340x290x360mm) | 14.7"x11.8"x16"(374x300x405mm) |
