Car Repair Essential: 1-Ton Foldable Crane, Heavy-Duty & Space-Saving

大画像 : Car Repair Essential: 1-Ton Foldable Crane, Heavy-Duty & Space-Saving

商品の詳細:

起源の場所:	Zhijiang、中国
ブランド名:	YEEDA
証明:	CE
モデル番号:	YD01-005

お支払配送条件:

最小注文数量:	50個
価格:	$165
パッケージの詳細:	カートンボックスまたはクレート
受渡し時間:	30-45日
支払条件:	T/T
供給の能力:	500個/月

詳細製品概要

定格容量:	1,000のkg	総重量:	80kg (175ポンド)
正味重量:	70kg (154ポンド)	調整可能なブームの長さ:	1,009mm～1,259mm
ベース寸法（拡張時）:	1,499mm(長さ)×900mm(幅)	梱包寸法:	1,420mm×380mm×380mm（55.9インチ×15インチ×15インチ）
ハイライト:	1-ton foldable engine hoist , heavy-duty car repair crane , space-saving engine hoist stand

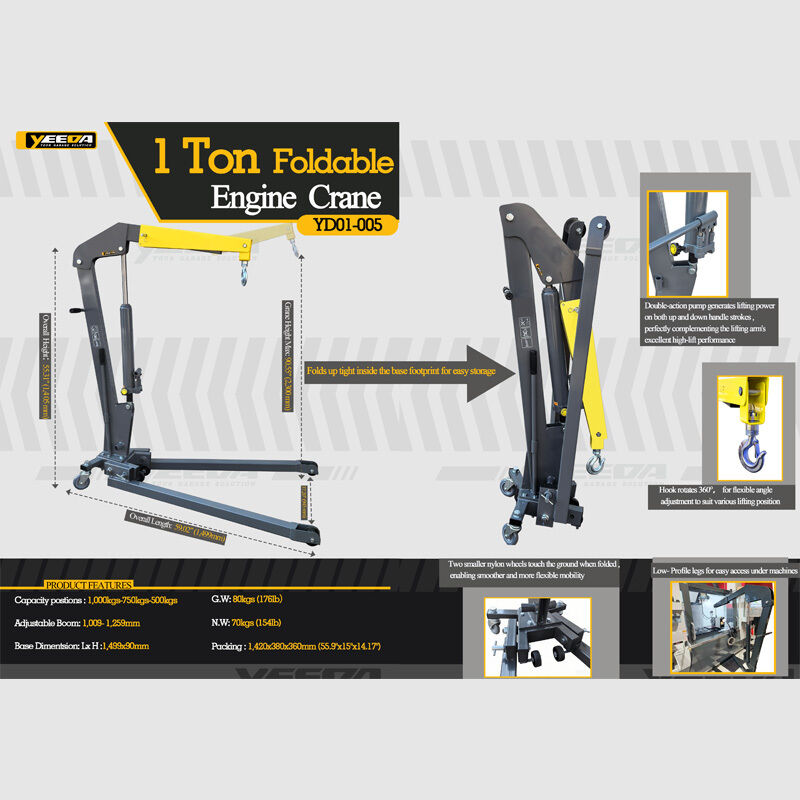

YEECA 1 Ton Foldable Engine Crane (Model: YD01-005)

Professional-grade foldable crane designed for automotive repair and industrial maintenance with space-saving storage capabilities.

Product Specifications

Rated Capacity	1,000 kg (Adjustable positions: 1,000 kg / 750 kg / 500 kg)
Gross Weight (G.W.)	80 kg (175 lb)
Net Weight (N.W.)	70 kg (154 lb)
Adjustable Boom Length	1,009 mm - 1,259 mm
Base Dimensions (Expanded)	1,499 mm (L) x 900 mm (W)
Packing Dimensions	1,420 mm x 380 mm x 380 mm (55.9" x 15" x 15")

Key Features

Compact Foldable Design: Folds up neatly within its own base footprint for easy and space-saving storage
Enhanced Mobility: When folded, two smaller nylon wheels contact the ground for smooth and flexible movement
Low-Profile Legs: Designed for easy access and operation under vehicles and machinery
360° Swivel Hook: Allows flexible angle adjustment to suit various lifting points and positions
Double-Action Hydraulic Pump: Provides efficient and controlled lifting power

Application Scenarios

Automotive Workshop: Lifting and removing engines, transmissions, and other heavy components from cars, trucks, or SUVs
Equipment Maintenance: Hoisting motors, pumps, or machinery parts in industrial or agricultural settings
DIY & Home Garage Projects: Assisting enthusiasts with major repairs, engine swaps, or fabrication work

Frequently Asked Questions

What is the actual lifting capacity?

The crane has a maximum rated capacity of 1,000 kg. It features clearly marked capacity positions (1,000 kg, 750 kg, 500 kg) corresponding to different boom extensions for safe operation. Never exceed the rated load.

How portable and storable is it?

Its key advantage is portability. It folds compactly into its base footprint. When folded, it weighs 70 kg and rolls on two nylon wheels, making it manageable for one person to move on flat ground. The packed dimensions are 1420x380x380mm.

Is it suitable for low-clearance vehicles?

Yes, the low-profile leg design is specifically made to slide easily under vehicles and machinery with low ground clearance.

What maintenance does the hydraulic system require?

Regularly check the hydraulic fluid level and inspect for leaks. Keep the pump and ram clean. When storing for long periods, release pressure by lowering the boom fully and avoid leaving it under load.
