詳細情報 |
|||
モデルいいえ。: | YD08-003E及びYD08-003F | 名前: | 2トンの油圧持ち上がるビーム |
---|---|---|---|
材料: | 鋼鉄 | 機能: | 油圧 |
タイプ: | 1つのシリンダー油圧上昇 | 持ち上がる容量: | 2TON |
色: | 赤くおよび青の常態は、およびカスタマイズすることができる | 表面: | 粉のコーティング |
MOQ: | 10セット | 支払の言葉: | 1) T/Tの30%の沈殿物、B/Lのコピーに対して70%。2)一覧でL/C。 |
N.W./G.W.: | 98/110kgs | パッケージ: | 合板の箱 |
ハイライト: | ビームを持ち上げる油圧2トン,腕のエクステンダー ビームを持ち上げる2トン,2t油圧持ち上がるビーム |
製品の説明

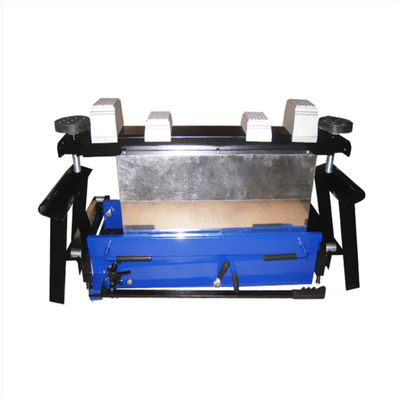

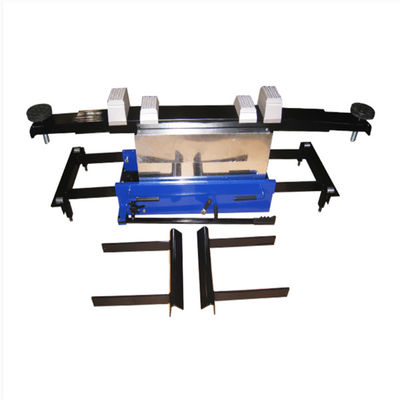

2 Ton and 3 Ton Hydraulic Jacking Beam with Arm Extenders & Flat Roller Supports
Feature:
- Two-stage mechanical safety lock and telescopic finger guards to prevent accidental injury.
- Supplied with two pairs of aluminium support blocks.
- Beam has spring loaded flat arms with roller bearings - when unloaded, these support the weight of the beam, allowing the entire unit to run smoothly along the pit or ramp, but when loaded, they firmly stabilise the unit.
- Optional hook arms supplied.
Technical Specification:
Model No | Capacity | Support Arm Reach | Beam Lift Range | Load Arm Reach | N.W./G.W. | Package Size | 20ft cntr |
YD08-003E | 2 ton | 780-1075 mm | 95-300 mm | 850-1600 mm | 98/110 kg | 99x49x35 cm | 130pcs |
YD08-003F | 3 ton | 780-1075 mm | 95-300 mm | 850-1600 mm | 102/112 kg | 99x49x35 cm | 130pcs |
